ScreenCoder: Advancing Visual-to-Code Generation for Front-End Automation via Modular Multimodal Agents

Yilei Jiang^1*, Yaozhi Zheng^1*, Yuxuan Wan^2*,
Jiaming Han¹, Qunzhong Wang¹,
Michael R. Lyu², Xiangyu Yue<sup>1✉

1</sup>CUHK MMLab, ²CUHK ARISE Lab

^*Equal contribution  ^✉Corresponding author



Demo Videos

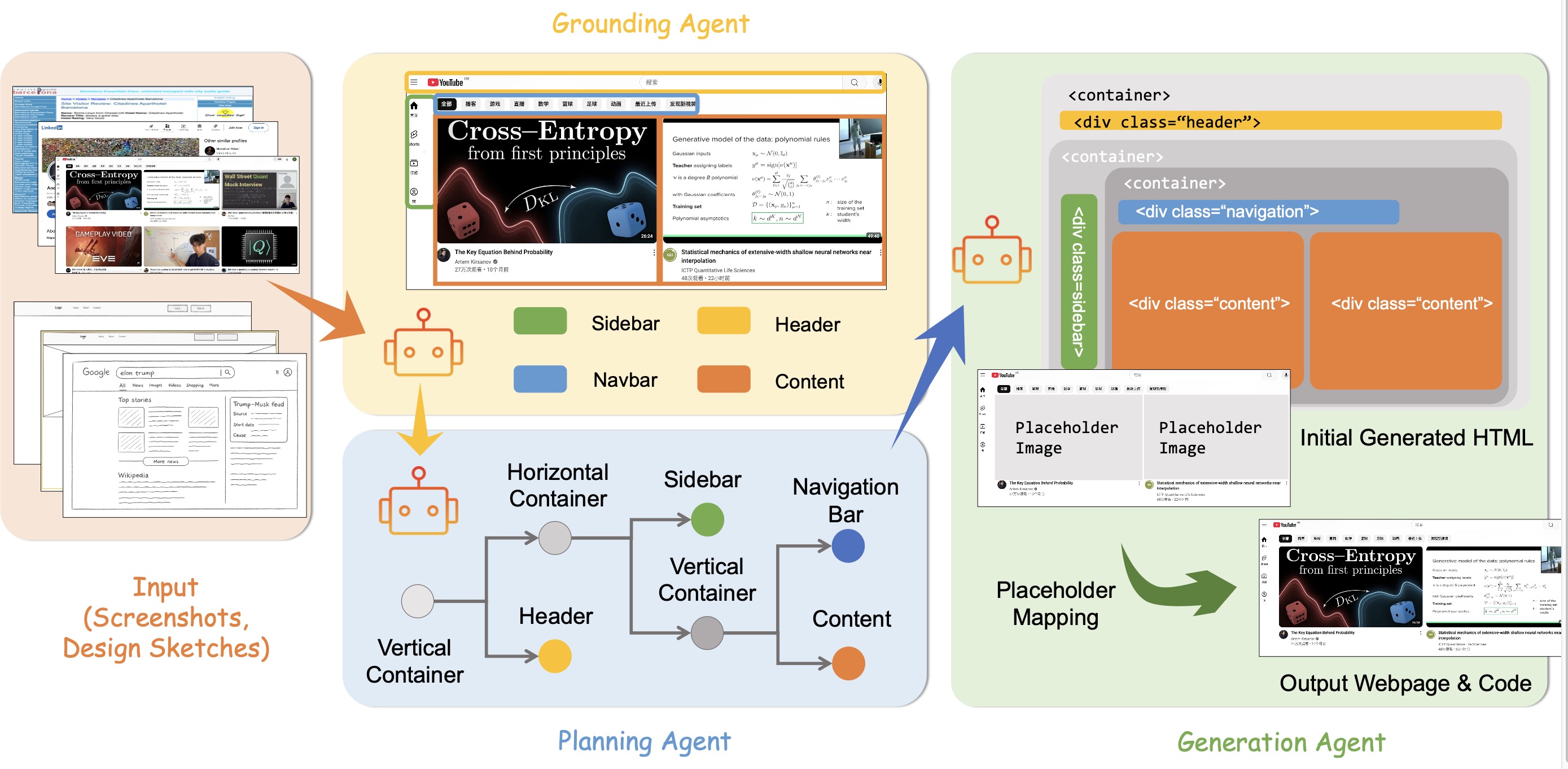

A showcase of how ScreenCoder transforms UI screenshots into structured, editable HTML/CSS code using a modular multi-agent framework.

Youtube Page

https://github.com/user-attachments/assets/5d4c0808-76b8-4eb3-b333-79d0ac690189

Instagram Page

https://github.com/user-attachments/assets/9819d559-863e-4126-8506-1eccaa806df0

Design Draft（allow customized modifications!）

https://github.com/user-attachments/assets/d2f26583-4649-4b6d-8072-b11cd1025f4b

Project Structure

• main.py: The main script to generate final HTML code for a single screenshot.
• UIED/: Contains the UIED (UI Element Detection) engine for analyzing screenshots and detecting components.
  • run_single.py: Python script to run UI component detection on a single image.
• html_generator.py: Takes the detected component data and generates a complete HTML layout with generated code for each module.
• image_replacer.py: A script to replace placeholder divs in the final HTML with actual cropped images.
• mapping.py: Maps the detected UIED components to logical page regions.
• requirements.txt: Lists all the necessary Python dependencies for the project.
• doubao_api.txt: API key file for the Doubao model (should be kept private and is included in .gitignore).

Setup and Installation

1. Clone the repository:

   git clone https://github.com/JimmyZhengyz/screencoder.git
   cd screencoder


2. Create a virtual environment:

   python3 -m venv .venv
   source .venv/bin/activate


3. Install dependencies:

   pip install -r requirements.txt


4. Set up API Key:

   • Create a file named doubao_api.txt in the root directory.
   • Paste your Doubao API key into this file.

Usage

The typical workflow is a multi-step process as follows:

1. Initial Generation with Placeholders: Run the Python script to generate the initial HTML code for a given screenshot.

   • Block Detection:

     python block_parsor.py


   • Generation with Placeholders (Gray Images Blocks):

     python html_generator.py


2. Final HTML Code: Run the python script to generate final HTML code with copped images from the original screenshot.

   • Placeholder Detection:

     python image_box_detection.py


   • UI Element Detection:

     python UIED/run_single.py


   • Mapping Alignment Between Placeholders and UI Elements:

     python mapping.py


   • Placeholder Replacement:

     python image_replacer.py


3. Simple Run: Run the python script to generate the final HTML code:

   python main.py
